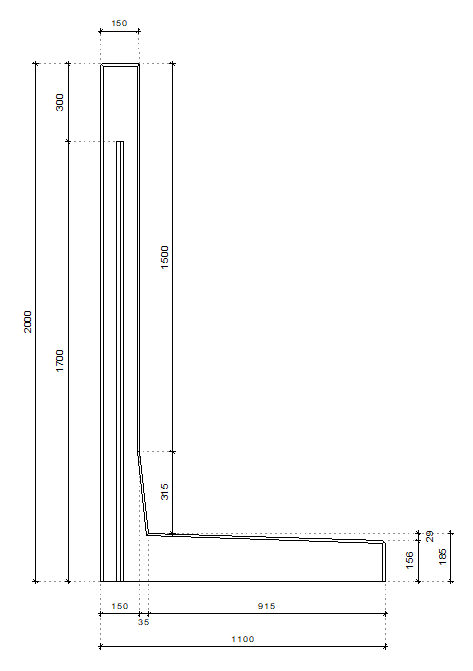

Technical drawing
Description
The LR retaining wall without heel has been specially developed for heavier (R=retaining) load applications in civil engineering and is available in a number of different lengths. The LR retaining wall is always 150 mm thick at the top edge and is equipped with a special coupling slat recess. As a result, this retaining wall is ideal for placement at different heights.
* This retaining wall does not have a heel and is therefore perfect for use at a plot boundary.
* The retaining wall has a total net height, making it easy to measure and place.
* The foot side is the load-bearing side.
* The perpendicular rear side results in an attractive, straight and dimensionally stable retaining wall following placement.
* The robust design makes this retaining wall ideal for demanding environmental (chemical) applications.
* This retaining wall has a life of at least 100 years.
* This retaining wall does not have a heel and is therefore perfect for use at a plot boundary.
* The retaining wall has a total net height, making it easy to measure and place.
* The foot side is the load-bearing side.
* The perpendicular rear side results in an attractive, straight and dimensionally stable retaining wall following placement.
* The robust design makes this retaining wall ideal for demanding environmental (chemical) applications.
* This retaining wall has a life of at least 100 years.
Specifications.
| Concrete mixture | 3rd Generation self-compacting C50/60 | Reinforcement steel | B500 |
|---|---|---|---|
| Weight | 4300kg (L = 3995mm) | Concrete cover | 45mm |
| Dimensional tolerance | +/- 5mm | Concrete surface finish | All visible sides class A (B1 on request) |
| Hoisting device | None, to be placed with clamp | Product warranty | 10 years |
| Environmental class | XA3, XC4, XD3, XS3, XF4 | Design life | 100 years |
