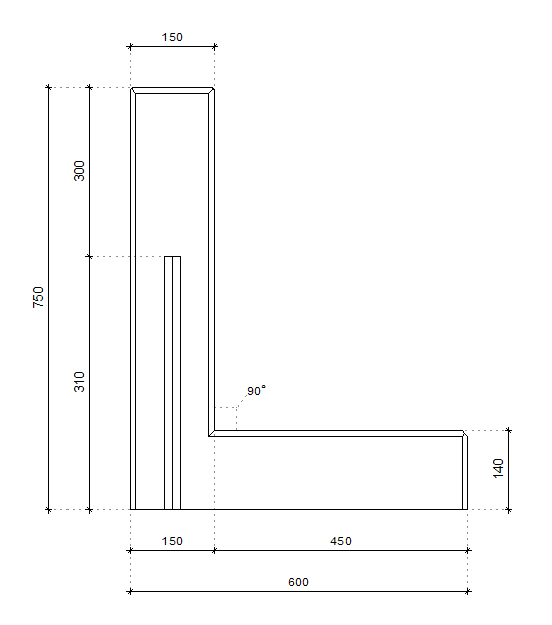

Technical drawing

LR-retaining walls (without heel) - LR075S

The LR retaining wall without heel has been specially developed for heavier (R=retaining) load applications in civil engineering and is available in a number of different... Read more
Options

Description

The LR retaining wall without heel has been specially developed for heavier (R=retaining) load applications in civil engineering and is available in a number of different lengths. The LR retaining wall is always 150 mm thick at the top edge and is equipped with a special coupling slat recess. As a result, this retaining wall is ideal for placement at different heights.
* This retaining wall does not have a heel and is therefore perfect for use at a plot boundary.
* The retaining wall has a total net height, making it easy to measure and place.
* The foot side is the load-bearing side.
* The perpendicular rear side results in an attractive, straight and dimensionally stable retaining wall following placement.
* The robust design makes this retaining wall ideal for demanding environmental (chemical) applications.
* This retaining wall has a life of at least 100 years.

Specifications.

Concrete mixture 2nd generation self-compacting C60/75 Reinforcement steel B500
Weight 1664kg (L = 3995mm) Concrete cover 45mm
Dimensional tolerance +/- 5mm Concrete suface finish All visible sides class A (B1 on request)
Design life 100 years Product warranty 10 years
Environmental class XA3, XC4, XD3, XS3, XF4 Hoisting device None, to be placed with clamp
