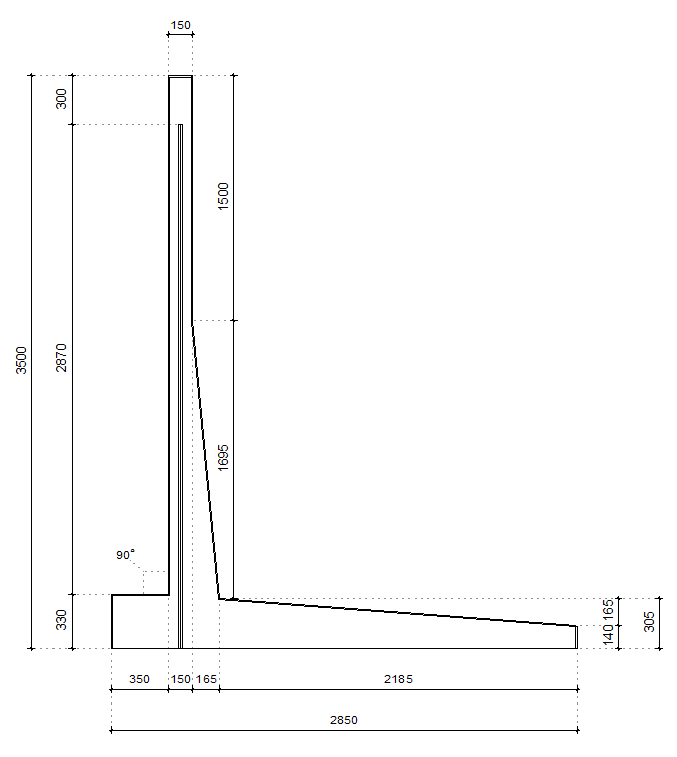

Technical drawing
Description
LR retaining walls (with heel)
"The LR retaining wall with heel has been specially developed for the heaviest (H=heavy) load applications in civil engineering and is available in a number of different lengths. The LR retaining wall is always 150 mm thick at the top edge and is equipped with a special coupling slat recess. As a result, this retaining wall is ideal for placement at different heights.
* The heel increases stability, allowing the wall to bear higher loads.
* The retaining wall has a total net height, making it easy to measure and place.
* The foot side is the load-bearing side.
* The perpendicular rear side results in an attractive, straight and dimensionally stable retaining wall following placement.
* If required, a gabion or fence, for example, can be installed on the heel following placement.
* The robust design makes this retaining wall ideal for demanding environmental (chemical) applications.
* This retaining wall has a life of at least 100 years.
"The LR retaining wall with heel has been specially developed for the heaviest (H=heavy) load applications in civil engineering and is available in a number of different lengths. The LR retaining wall is always 150 mm thick at the top edge and is equipped with a special coupling slat recess. As a result, this retaining wall is ideal for placement at different heights.
* The heel increases stability, allowing the wall to bear higher loads.
* The retaining wall has a total net height, making it easy to measure and place.
* The foot side is the load-bearing side.
* The perpendicular rear side results in an attractive, straight and dimensionally stable retaining wall following placement.
* If required, a gabion or fence, for example, can be installed on the heel following placement.
* The robust design makes this retaining wall ideal for demanding environmental (chemical) applications.
* This retaining wall has a life of at least 100 years.
Specifications.
Concrete mixture | 2nd generation self-compacting C60/75 | Reinforcement steel | B500 |
---|---|---|---|
Weight | 6423kg (L = 1995mm) | Concrete cover | 45mm |
Dimensional tolerance | +/- 5mm | Concrete suface finish | All visible sides class A (B1 on request) |
Design life | 100 years | Product warranty | 10 years |
Environmental class | XA3, XC4, XD3, XS3, XF4 | Hoisting device | Ball head anchor 10 tons |
