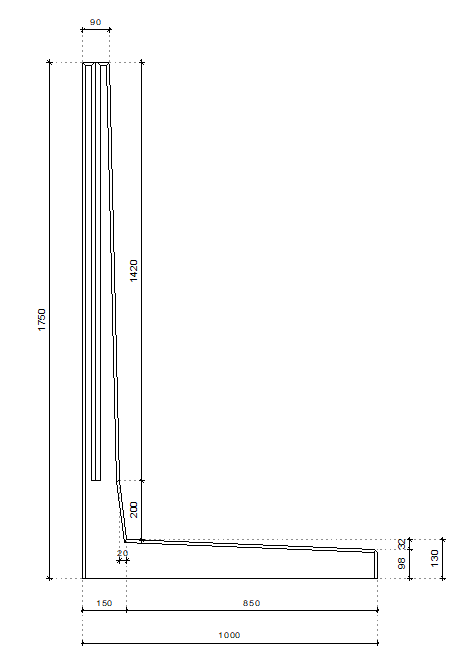

Technical drawing

L-retaining walls (without heel) - L175

The L retaining wall without heel has been specially developed for lighter load applications in civil engineering and is available in a number of different lengths.... Read more

Description

The L retaining wall without heel has been specially developed for lighter load applications in civil engineering and is available in a number of different lengths.
For corner solutions we also offer fixed L retaining wall corner elements.
* This retaining wall does not have a heel and is therefore perfect for use at a plot boundary.
* The retaining wall has a total net height, making it easy to measure and place.
* The foot side is the load-bearing side.
* The perpendicular rear side results in an attractive, straight and dimensionally stable retaining wall following placement.
* This retaining wall has a life of at least 50 years.

Specifications.

Concrete mixture 3rd generation self-compacting C55/67 Reinforcement steel B500
Weight 2830kg (L = 3995mm) Concrete cover 30mm
Dimensional tolerance +/- 5mm Concrete suface finish All visible sides class A (B1 on request)
Design life 50 years Product warranty 10 years
Environmental class XA3, XC4, XD3, XS3, XF4 Hoisting device None, to be placed with clamp
