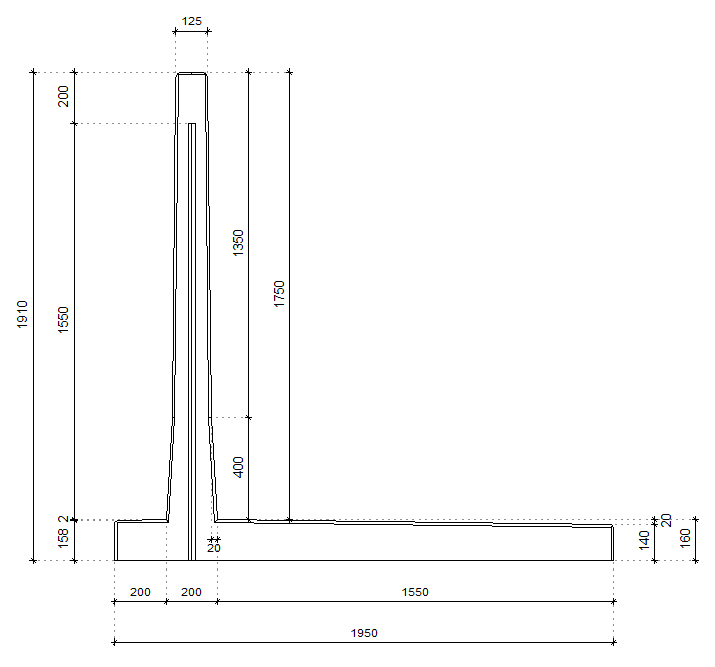

Technical drawing

LA-Retaining walls (Agricultural) - LA175V

The LA retaining walls have been specially developed for agricultural applications, such as silage clamps, biogas clamps, manure clamps, etc. These LA retaining walls are always... Read more

Description

The LA retaining walls have been specially developed for agricultural applications, such as silage clamps, biogas clamps, manure clamps, etc. These LA retaining walls are always equipped with a heel for maximum stability and safety. LA retaining walls are unique, as they are capable of absorbing the substantial compressive and impact forces generated during ensiling and feed-out using heavy shovels and tractors. LA retaining walls are available in 3 variants: LA-S retaining walls for a maximum axle load of 10 tonnes, LA-G retaining walls for a maximum axle load of 15 tonnes and LA-V retaining walls for a maximum axle load of 20 tonnes.

* The foot side is the internal, load-bearing side, where it is possible to ensile up to the rim using heavy shovels or tractors.
* The internal side has a total net height.
* Integrating the foot into the clamp floor ensures that no ensiling height is lost and the storage capacity is easy to calculate.
* The LA retaining walls have a slightly conical shape in both the upright wall section and the foot section to achieve the correct slope.
* They are also equipped with an extra-high bumper as protection against leachate and damage during feed-out.
* The rounded corners prevent the silage film from slipping and/or being damaged.
* If required, lashing straps can be fitted to the outside of the LA retaining walls following placement to allow additional tightening and securing of the silage film.

To complete your clamp, a range of accessories is also available, including leachate tanks, the Bosch Beton gutter and concrete floor slabs.

Specifications.

Concrete mixture 2nd generation self-compacting C60/75 Reinforcement steel B500
Weight 5270kg (L = 3995mm) Concrete cover 30mm
Dimensional tolerance +/- 5mm Concrete suface finish All visible sides class A (B1 on request)
Design life 50 years Product warranty 20 years
Environmental class XA3, XC4, XD3, XS3, XF4 Hoisting device None, to be placed with clamp

Extra options

Shortening and other adaptations
View this option
Partitioning wall connector
View this option
U wall connector
View this option
Drainage
View this option
Bevelling
View this option
Standard corner solution
View this option
